在現代工業與民用建筑的輸配電工程中，電纜橋架作為支撐和保護電力電纜、控制電纜及照明配線的剛性結構系統，發揮著至關重要的作用。它不僅品種全、應用廣，還具備強度大、造價低和施工靈活等顯著優點。為了滿足不同敷設環境的需求，橋架建立了一套嚴謹?shù)姆诸惻c執行標準體系。

In the transmission and distribution engineering of modern industrial and civil buildings, cable trays play a crucial role as rigid structural systems that support and protect power cables, control cables, and lighting wiring. It not only has a wide range of varieties and applications, but also has significant advantages such as high strength, low cost, and flexible construction. In order to meet the needs of different installation environments, a rigorous classification and execution standard system has been established for cable trays.

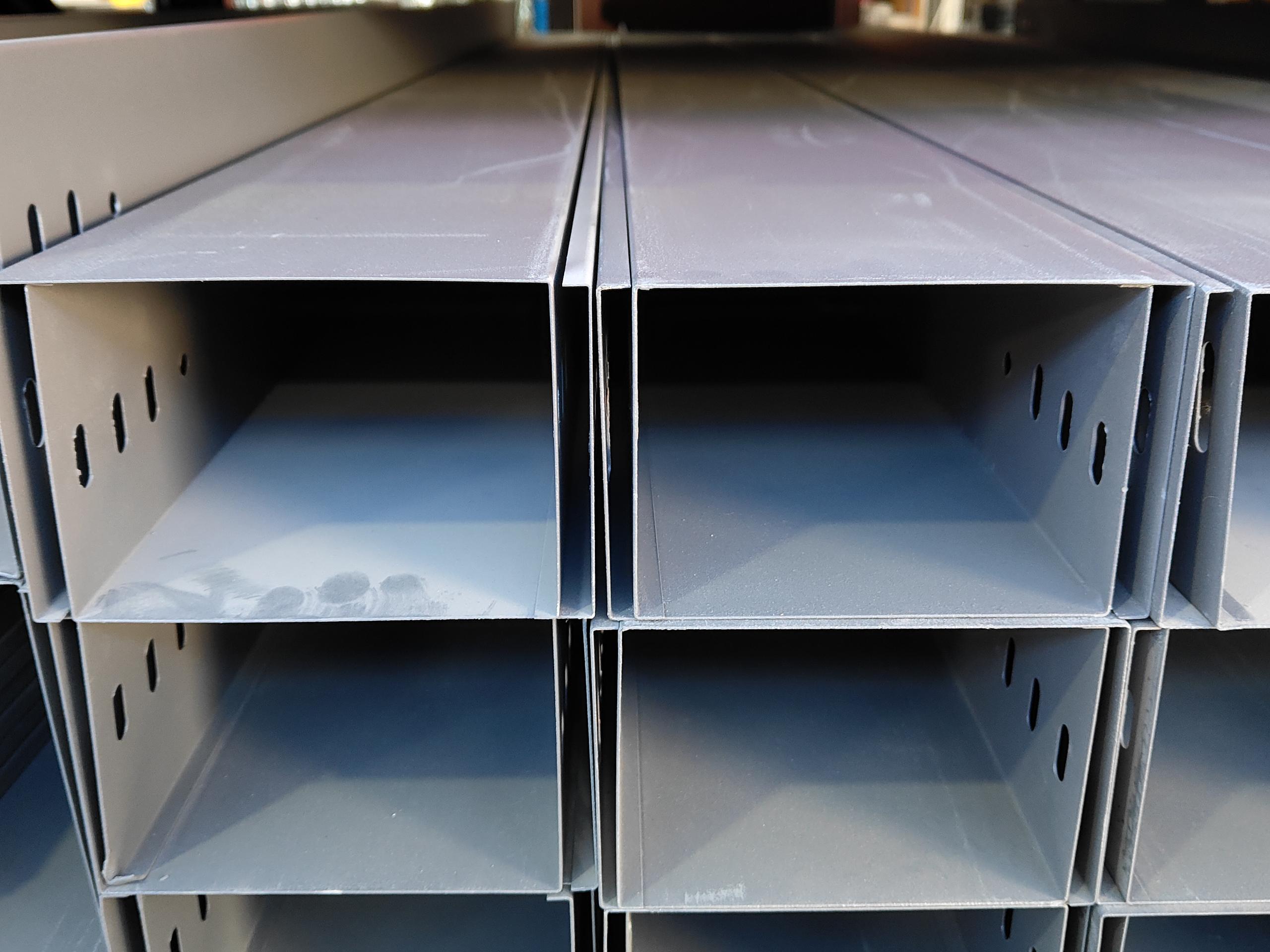

從材質上看，橋架主要分為鋼質（含不銹鋼）、鋁合金、玻璃鋼以及防火阻燃橋架。其中，防火阻燃橋架通過無機阻燃板或鋼質外殼加防火涂料的組合，專為消防線路等高安全需求場景設計。從形式上劃分，常見的有槽式、托盤式、梯級式和組合式，以適應不同線纜的散熱與防護要求。在表面處理方面，則涵蓋了冷鍍鋅、熱鍍鋅、噴塑及噴漆等多種防腐工藝。

From a material perspective, cable trays are mainly divided into steel (including stainless steel), aluminum alloy, fiberglass, and fire-resistant and flame-retardant cable trays. Among them, the fire-resistant and flame-retardant bridge frame is designed specifically for high safety scenarios such as fire protection lines by combining inorganic flame-retardant boards or steel shells with fire-resistant coatings. Formally, common types include slot type, tray type, ladder type, and combination type to meet the heat dissipation and protection requirements of different cables. In terms of surface treatment, it covers various anti-corrosion processes such as cold galvanizing, hot-dip galvanizing, spray painting, and spray painting.

在設計與制造環節，嚴格遵循JB/T10216-2000《電控配電用電纜橋架》等國家及行業標準是保障工程質量的前提。根據規范要求，橋架的正常安裝地點海拔不應超過2000米，且需根據戶內外環境匹配相應的防護等級（如戶內無孔托盤不低于IP30，戶外不低于IP33）。此外，針對板材厚度也有明確的底線規定，例如寬度在400mm至800mm之間的鋼制橋架，其非常小板厚建議達到2.0mm。這些嚴苛的技術條件確保了橋架在應對鹽霧、硫化氫等特殊化學腐蝕環境時，依然能夠保持結構的穩固與安全運行。

Strictly following national and industry standards such as JB/T10216-2000 "Cable Trays for Electrical Control and Distribution" in the design and manufacturing process is a prerequisite for ensuring project quality. According to regulatory requirements, the normal installation location of cable trays should not exceed an altitude of 2000 meters, and the corresponding protection level should be matched according to the indoor and outdoor environment (such as indoor unperforated trays not lower than IP30, outdoor trays not lower than IP33). In addition, there are clear bottom line regulations for the thickness of the sheet metal. For example, for steel cable trays with a width between 400mm and 800mm, the minimum sheet thickness must reach 2.0mm. These stringent technical conditions ensure that the cable tray can maintain structural stability and safe operation even in special chemical corrosion environments such as salt spray and hydrogen sulfide.
